Pure Titanium Rod Titanium Alloy Bar

Short Description:

Titanium Rods and Square Titanium Bar are all available from us, as well as Billet and Rod including titanium hot rolled bars, titanium forged bars, titanium turned bars etc.

Send email to us

Product Detail

Product Tags

Description

Titanium rod is the raw material used to make titanium alloy and titanium metal. It has the characteristics of low density, high strength and good corrosion resistance. In the aerospace industry, titanium rod is widely used in the manufacture of aircraft structural parts and rocket nozzles; in the chemical industry, it is used as a catalyst carrier and a purification device for electrolytes; in the machinery industry, it can be used as a heat exchanger and condenser material.

In the metallurgical industry, titanium rod/bar is mainly used to produce various pure iron, stainless steel, heat-resistant steel and special alloy steel. In addition, it is also used in the manufacture of artificial gemstones and artificial rutile zircon crystals, piezoelectric ceramic sheets for the electronics industry, and precision castings of various shapes.

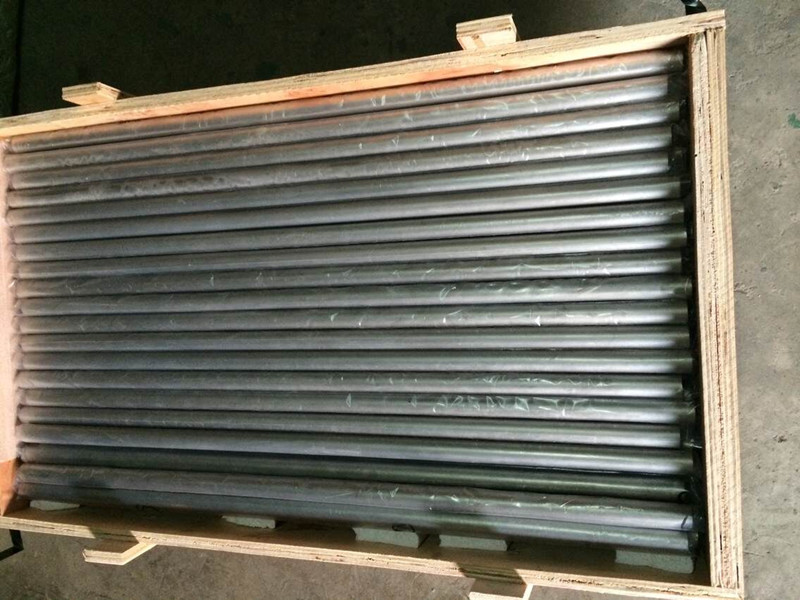

Pure Titanium Rod Titanium Alloy Bar (2)

Pure Titanium Rod / Titanium Alloy Bar Specifications

Titanium Alloy Grade: Gr.5, Gr.23, Ti-6Al-4v-Eli, TI5, BT6,Ti-6al-7Nb.

Commercial pure Titanium Grade: Gr.3, Gr.4 commercially pure.

Diameter Range: Ø5mm, Ø6mm, Ø8mm, Ø12mm, Ø14mm, Ø25mm, Ø30mm, etc.

Tolerance Standard: ISO 286.

Standard: ASTM F67, ASTM F136, ISO 5832.

Available length: 2.5 m ~ 3 m (98.4 ~ 118.1"), or customized.

Straightness: perfect for CNC machining.

All the Titanium and Titanium Alloy rods/bars could be supplied with customized diameter or length, to fit Customer's requirements.

Features of titanium alloy rods: Excellent elasticity, high strength and homogeneous microstructure.

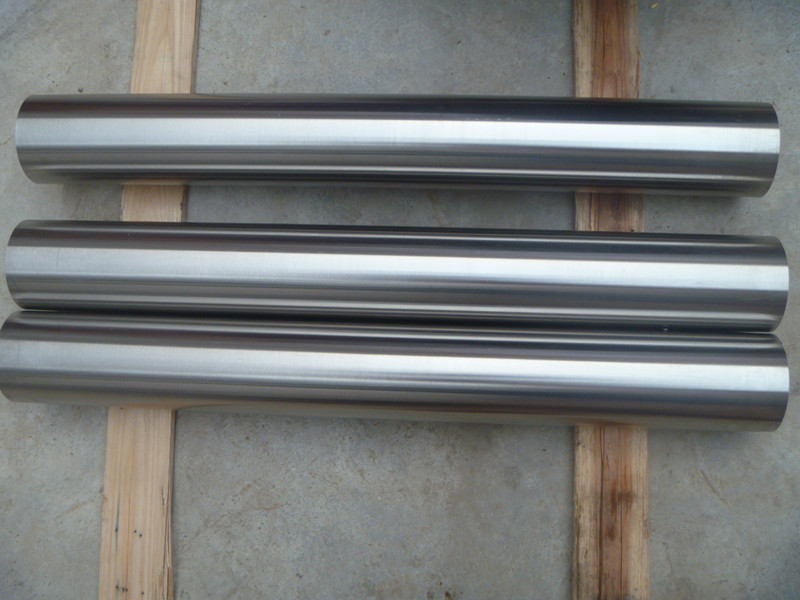

Pure Titanium Rod Titanium Alloy Bar (1)

Titanium Grade Available

ASTM B265		GB/T 3620.1	JIS H4600	Elemental content (wt%)
ASTM B265		GB/T 3620.1	JIS H4600	N,Max	C,Max	H,Max	Fe,Max	O,Max	Others
PureTitanium	Gr.1	TA1	Class 1	0.03	0.08	0.015	0.20	0.18	-
	Gr.2	TA2	Class 2	0.03	0.08	0.015	0.30	0.25	-
	Gr.3	TA3	Class 3	0.05	0.08	0.015	0.30	0.35	-
	Gr.4	TA4	Class 4	0.05	0.08	0.015	0.50	0.40	-
TitaniumAlloy	Gr.5	TC4 Ti-6Al-4V	Class 60	0.05	0.08	0.015	0.40	0.20	Al:5.5-6.75; V:3.5-4.5
	Gr.7	TA9	Class 12	0.03	0.08	0.015	0.30	0.25	Pd:0.12-0.25
	Gr.11	TA9-1	Class 11	0.03	0.08	0.015	0.20	0.18	Pd:0.12-0.25
	Gr.23	TC4 ELI	Class 60E	0.03	0.08	0.0125	0.25	0.13	Al:5.5-6.5; V:3.5-4.5
