Tungsten Copper Alloy (WCu Alloy)
Description And Specifications
Description:

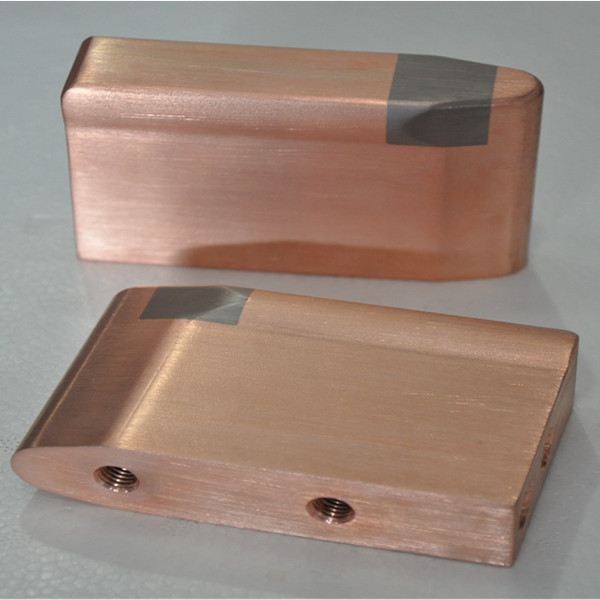

Tungsten copper alloy can be made into rods, plates and other fabricated spare parts according to customers’ requests. Widely used as electrical contact, electrodes, heat sinks etc.
Specifications:
Tungsten Copper Alloy Grade:
W50Cu50, W60Cu40, W65Cu35, W70Cu30, W75Cu25, W80Cu20, W85Cu15, W90Cu10.
Density:11.8-16.8g/cm3.
Surface: Machined & Ground.

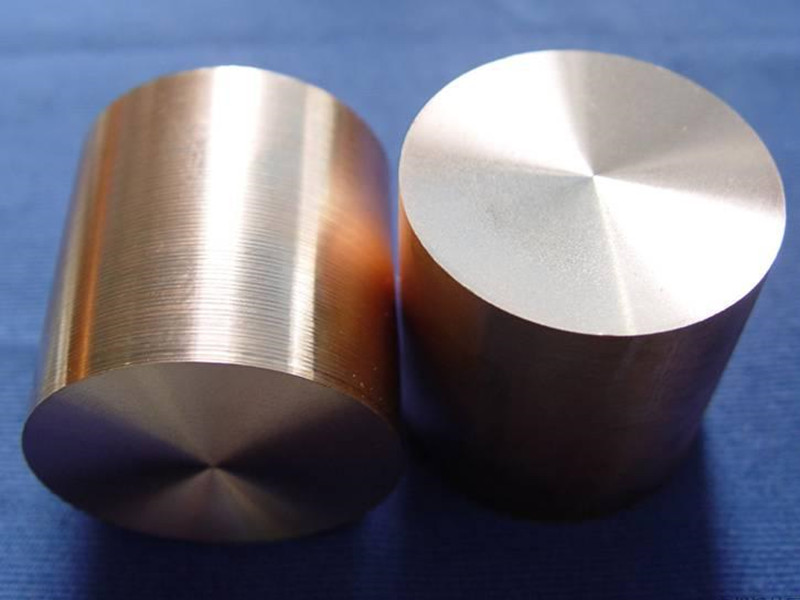

Copper Tungsten Rods: Dia (10-60)mm x (150-250)mm L.
| Code No. | Chemical Composition % | Mechanical properties | ||||||
| CU | Impurity≤ | W | Density (g/cm3 ) ≥ | Hardness HB ≥ | RES (μΩ·cm) ≤ | Conductivity IACS/ % ≥ | TRS/ Mpa ≥ | |
| CuW(50) | 50±2.0 | 0.5 | Balance | 11.85 | 115 | 3.2 | 54 | |
| CuW(55) | 45±2.0 | 0.5 | Balance | 12.30 | 125 | 3.5 | 49 | |
| CuW(60) | 40±2.0 | 0.5 | Balance | 12.75 | 140 | 3.7 | 47 | |
| CuW(65) | 35±2.0 | 0.5 | Balance | 13.30 | 155 | 3.9 | 44 | |
| CuW(70) | 30±2.0 | 0.5 | Balance | 13.80 | 175 | 4.1 | 42 | 790 |
| CuW(75) | 25±2.0 | 0.5 | Balance | 14.50 | 195 | 4.5 | 38 | 885 |
| CuW(80) | 20±2.0 | 0.5 | Balance | 15.15 | 220 | 5.0 | 34 | 980 |
| CuW(85) | 15±2.0 | 0.5 | Balance | 15.90 | 240 | 5.7 | 30 | 1080 |
| CuW(90) | 10±2.0 | 0.5 | Balance | 16.75 | 260 | 6.5 | 27 | 1160 |
Copper Tungsten Alloy Advantages
1. Better heat resistant;
2. Better ablate-resistant;
3. High intensity.
4. High density;
5. Excellent thermal and electrical conductivity;
6. Easy to be machined.
Application of Tungsten Copper Alloy
Tungsten copper (Cu-W) alloy is the composite of tungsten and copper which own he excellent performance of tungsten and copper. It is used widely in such industries as engine, electric power, electron, metallurgy, spaceflight and aviation.

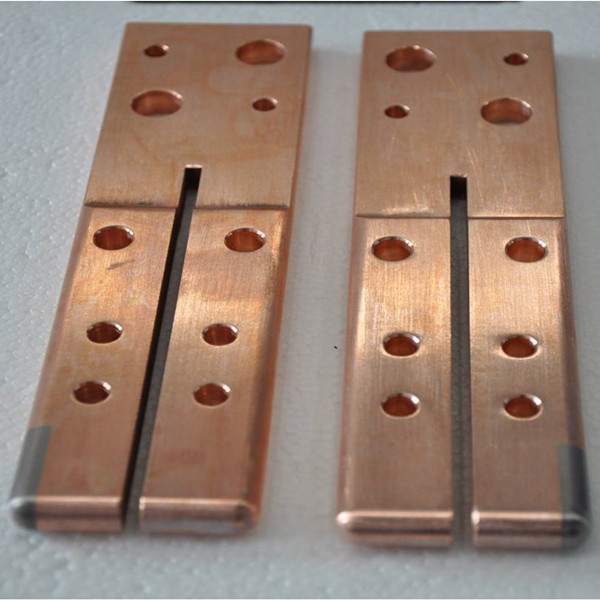

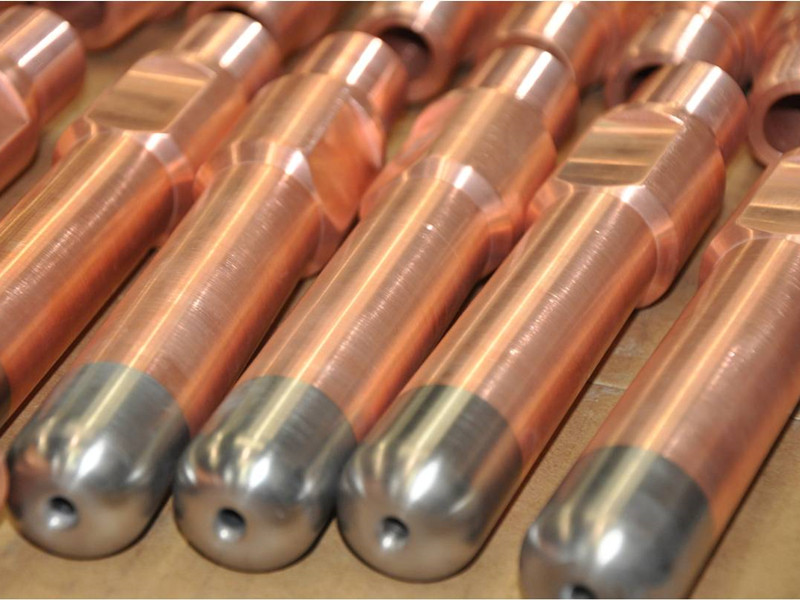

1) Arcing contacts and vacuum contacts in high and medium voltage breakers or vacuum interrupters
2) Electrodes in electric spark erosion cutting machines
3) Heat sinks as passive cooling elements of electronic devices
4) Electrodes for Resistance Welding.
